Anode super welding protection sheet
Product Description
Ultrasonic welding protective sheet: a thin sheet material used to protect the cathode and anode welding areas of batteries; Mainly used to protect the welding area, prevent heat and pressure damage to battery components, and provide insulation.
Basic Info.

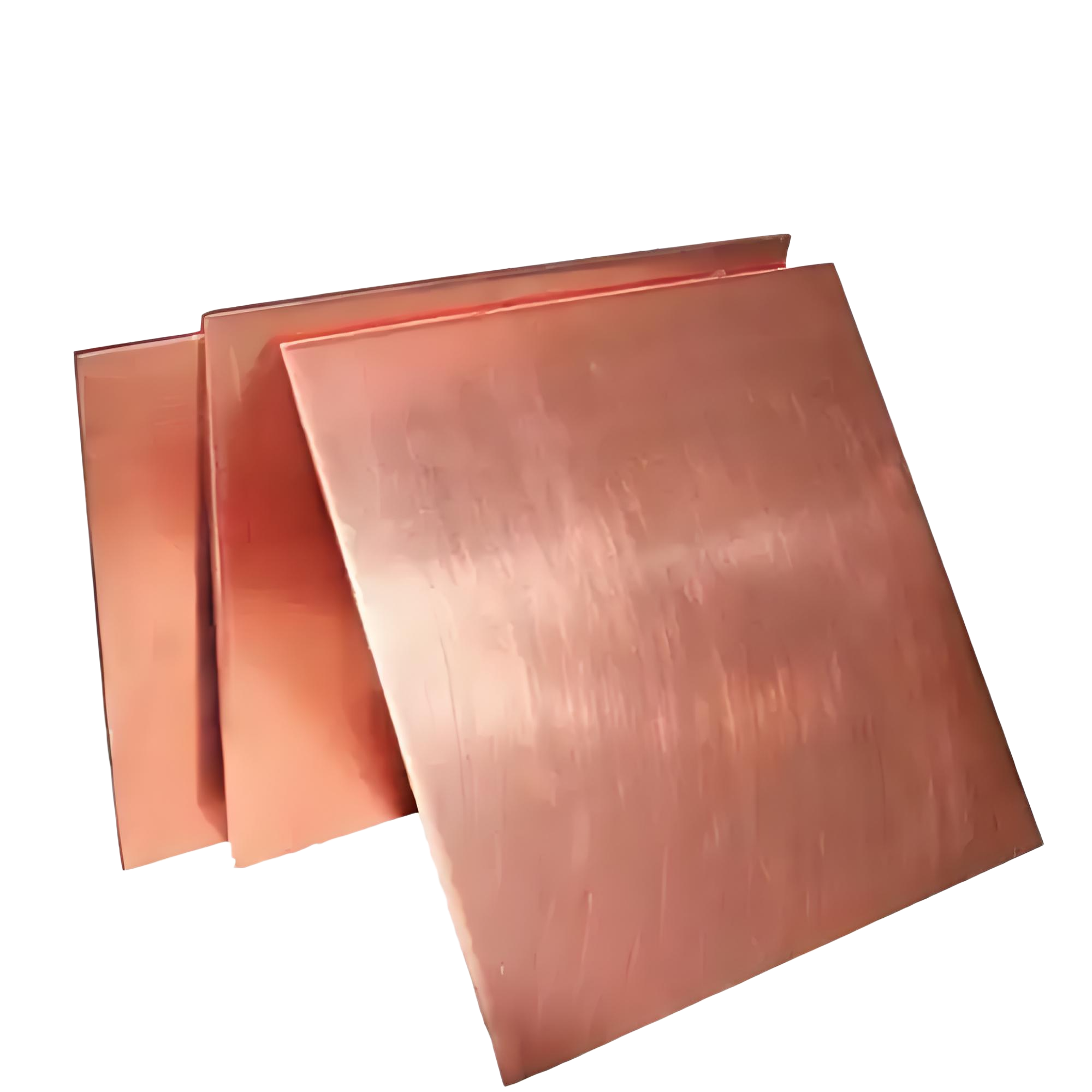

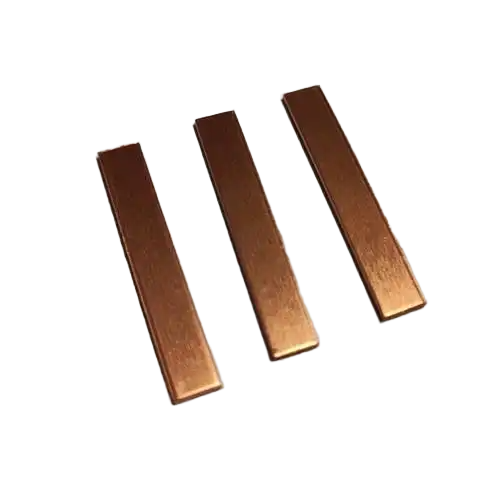

Anode super welding protection sheet
|
Parameter | |
| Thickness | 0.05-0.3mm |
| Temperature resistance | -40 ° C-250 ° C |
| Tensile strength | 50-150MPa |
| Shear strength | 20-100N/mm ² |
| Adhesive properties | Good adhesion (1-10N/cm) |
| Voltage breakdown resistance: Voltage breakdown strength | >30kV/mm |
| Compressive strength | 20-60MPa |
